Engineer Service   »  Catalog   »  Lenses   »  Zeiss   »  Compact Primes CP.2

Compact Primes CP.2



The Compact Prime CP.2 lenses are the latest members of the ZEISS family of lenses for digital and film cameras. This second generation of the Compact Prime lenses now delivers even greater flexibility by introducing interchangeable mounts that allow the lenses to be used with a wide range of cameras from traditional cine to HDSLR systems.



  • Interchangeable mount allows a mix of HDSLR systems with traditional cine cameras
  • Full-frame coverage (24 x 36mm ) for focal lengths 21 to 100 mm, including a 50 mm macro lens
  • Common aperture of T2.1 for the standard lens set
  • No need for adapter solutions anymore
  • Five different mounts available (PL, EF, F, E and MFT mount)
  • High stability due to support bracket, which is included for additional lens stability
  • Sweet spot effect with APS-C sensors

Switching between traditional film and digital PL cine cameras and HDSLR cameras is no longer an issue. The Compact Prime CP.2 lenses’ improved functionality means improved ergonomics compared to standard SLR lenses, standard housing dimensions, standard focus and iris gear positions, a consistent front diameter, a robust construction, longer focus rotation and a manual focus, thereby providing the flexibility users demand. With precision and speed - Compact Prime CP.2 lenses are the perfect tool for Independent filmmakers, professional still photographers expanding their services or large studios using HDSLR’s as a second camera for TV and feature film productions.


Prime Lenses
Type
Aperture range
T-Stop
Close focus distance1

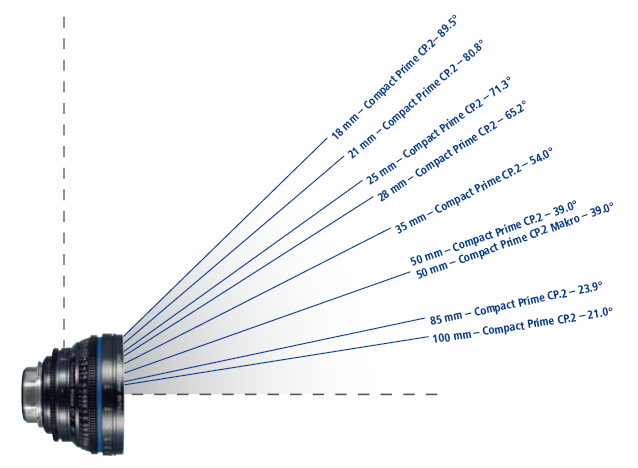

Horizontal angle of view
Length5
Front diameter
Weight
Full-Frame3
ANSI Super 352
Normal 354
Compact Prime CP.2 18 mm/T3,6
Distagon T*
T 3.6 to T 22
3.6
0.3 m / 12‘‘
89.5°
69°
62.5°
80 mm / 3.15‘‘
114 mm / 4.5“
0.9 kg / 2.0 lbs
Compact Prime CP.2 21 mm/T2,9
Distagon T*
T 2.9 to T 22
2.9
0.24 m / 10‘‘
80.8°
60.9°
54.8°
80 mm / 3.15‘‘
114 mm / 4.5“
1.0 kg / 2.2 lbs
Compact Prime CP.2 25 mm/T2,9
Distagon T*
T 2.9 to T 22
2.9
0.17 m / 7‘‘
71.3°
52.5°
47°
80 mm / 3.15‘‘
114 mm / 4.5“
0.9 kg / 2.0 lbs
Compact Prime CP.2 28 mm/T2,1
Distagon T*
T 2.1 to T 22
2.1
0.24 m / 10‘‘
65.2°
47.4°
42.3°
80 mm / 3.15‘‘
114 mm / 4.5“
1.0 kg / 2.2 lbs
Compact Prime CP.2 35 mm/T2,1
Distagon T*
T 2.1 to T 22
2.1
0.3 m / 12‘‘
54.0°
38.5°
34.3°
80 mm / 3.15‘‘
114 mm / 4.5“
1.0 kg / 2.2 lbs
Compact Prime CP.2 50 mm/T2,1
Planar T*
T 2.1 to T 22
2.1
0.45 m / 18‘‘
39.0°
27.3°
24.2°
80 mm / 3.15‘‘
114 mm / 4.5“
0.9 kg /2.0 lbs
Compact Prime CP.2 85 mm/T2,1
Planar T*
T 2.1 to T 22
2.1
1 m / 3‘ 3‘‘
23.9°
16.7°
14.8°
80 mm / 3.15‘‘
114 mm / 4.5“
0.9 kg /2.0 lbs
Compact Prime CP.2 100 mm/T2,1
Planar T*
T 2.1 to T 22
2.1
0.7 m / 2‘6“
21.0°
14.7°
13.1°
132 mm / 5.19“
114 mm / 4.5“
1.49 kg / 3.3 lbs
Compact Prime CP.2 50 mm/T2,1
Makro- Planar T*
T 2.1 to T 22
2.1
0.24 m / 10“
39.0°
27.3°
24.2°
132 mm / 5.19“
134 mm / 5.3“
1.35 kg / 3.0 lbs






 Data Sheet for Compact Primes CP.2, PDF
