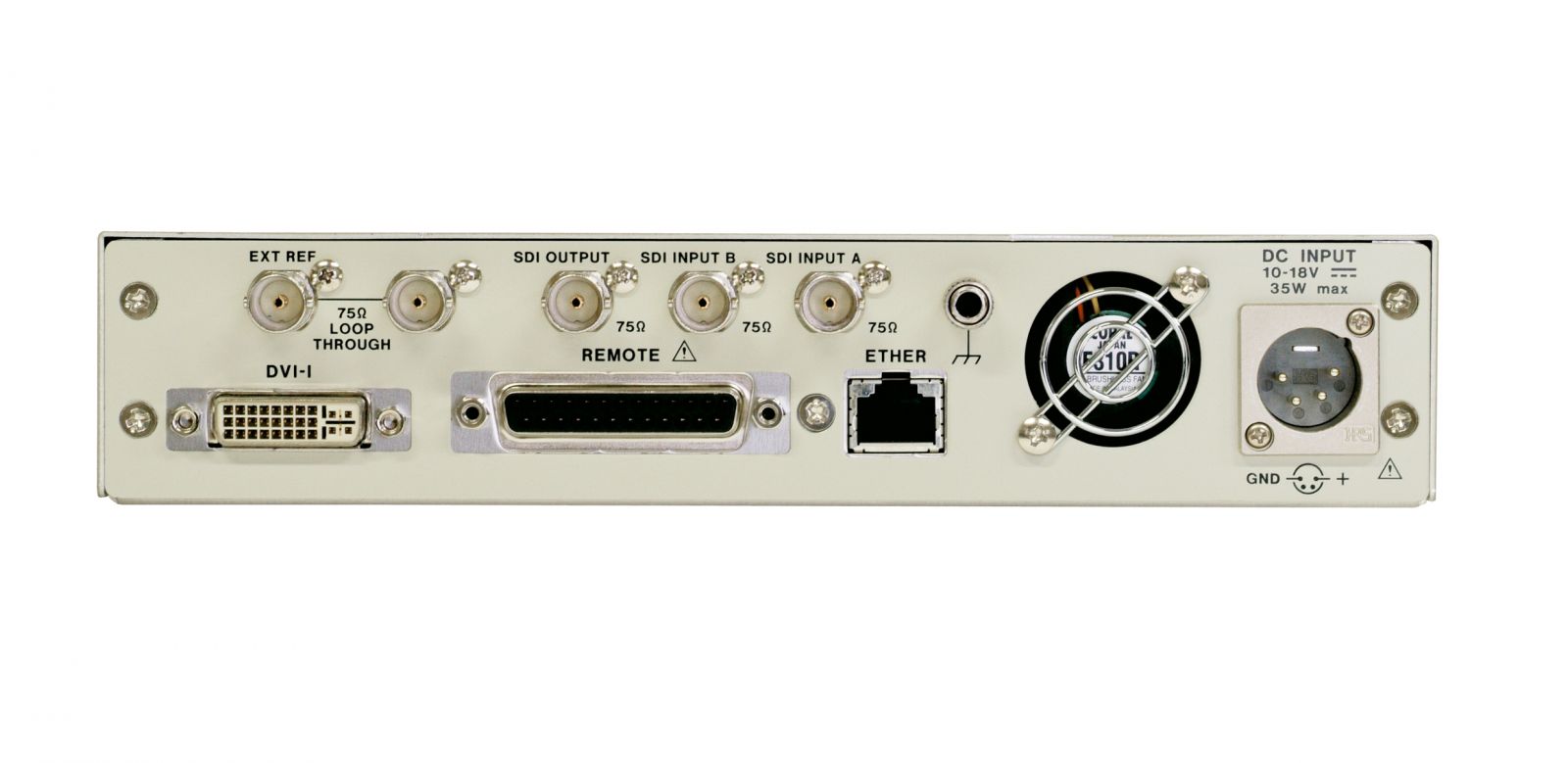

LV7700 Rasterizer


Waveform monitor and vectorscope functions include cursor measurements, filters, gain and timing control for all your pro-video measurement needs. Full line select capabilities aid in detailed signal examination; a data dump showing the actual data for each line can be reviewed in detail and with various data layout options.
  • Multi-Format SD And HD-SDI Rasterizer Conforms To 17 SD & HD Standards; Accommodates 2 SDI Inputs (LV 7720 : SD only).
  • Waveform, Vector, Audio, Picture And Data Monitoring Functions Can Be Displayed Individually Or In Several Screen Combinations.
  • XGA Output Provides For Excellent Display Clarity And Resolution.
  • Extensive Error Detection And Error Logging Facilities Include Gamut Detection And Settable Error Limits.
  • Selectable Determination Criteria of the Signal Level
  • Digital Analysis Screens Include Data Dump As Well As Equivalent Cable Length Readings.
  • Instrument Can Be Controlled Via Front Panel Or Ethernet.
  • All Screens Can Be Captured And Compared To Live; Captured Screens Can Be Saved To A Compact Flash Card For Documentation Purposes.
  • DC Powered For Ease Of Use In The Field; AC Adapter Is Included.

 Data Sheet, PDF
