Media Burst, the Systems Integration company of the Mediapro group, chose three LEADER LV 5490 multi-screen waveform monitors for ultra-high definition coverage of the Real Madrid versus Barcelona football match in Madrid on Saturday November 21.
The game was captured using 12 4K UHD cameras delivering wide angle and close-up coverage from various locations around the Santiago Bernabeu stadium. The UHD feed was distributed via satellite by Hispasat using MPEG-4 AVC (H.264) compression encoding, and via Movistar+ to its fibre customers using the new HEVC (H.265) compression standard.
"This was a milestone event in terms of sports broadcasting," says Jordi Rubio Gimeno, Manager of Media Burst. We premiered a brand new mobile production vehicle equipped specifically for UHD. Shooting in 4K enabled us to capture the action in four times the detail possible in high definition. It also provided a basis for extraordinarily high quality HD downconversions. The LV 5490 instruments provided exactly the features we needed to maintain the maximum possible signal quality across the incoming feeds from 12 full broadcast standard UHD cameras."

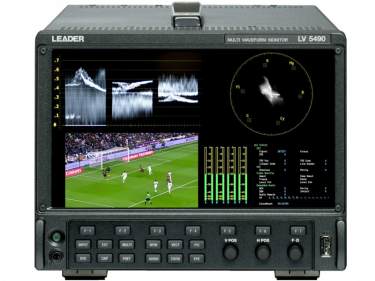

The LEADER LV 5490 is a highly versatile waveform monitor supporting the full range of standard video production and transmission resolutions from 525 and 625 standard definition up to 3840 x 2160 and 4096 x 2160 4K ultra-high definition. It incorporates a 1920 x 1080 9 inch LCD monitor with a wide viewing angle and high quality colorimetry. This allows simultaneous analysis of up to four video channels. The instrument’s 4K capability is particularly useful to people working with latest generation cameras, whether for digital cinematography or high-end broadcast applications.
Equipped with eight input connectors, the LV 5490 accepts up to two 4K signals simultaneously. In the 4K video format mode, 3G-SDI dual link or quad link is supported. Up to four 3G-SDI dual link 4K video inputs or up to two 3G-SDI quad link 4K video inputs can be selected for display, or two sets of HD-SDI dual link signals. In the SDI mode, up to four signals can be displayed simultaneously. The LV 5490 is also equipped to handle video signals via two-sample interleave as well as square division. Two-sample interleave is the approved standard for 4K.
The LV 5490 can be operated in a very wide selection of test and measurement roles. These include waveform, vector, picture monitoring, SDI signal status (which looks for cyclic-redundancy-check errors and embedded-audio errors), an event log, data dump and four-channel timing display. Waveform, vector and picture can be viewed simultaneously on the LV 5490 screen. Simultaneous display and overlay display of multiple SDI inputs is possible. Size and location of individual channel displays can be adjusted using a USB mouse. The LV5490 can also be controlled remotely using standard KVM tools.
In addition to its video test and measurement capabilities, the LEADER LV 5490 incorporates a versatile selection of audio monitoring and analysis tools, which are available with the Digital Audio option. These include 4 x 4 channels of SDI audio de-embedding, lissajous display, surround-sound display and volumetric display. Up to 16 channels of de-embedded SDI audio can be displayed on screen and output as discrete AES3 feeds.
