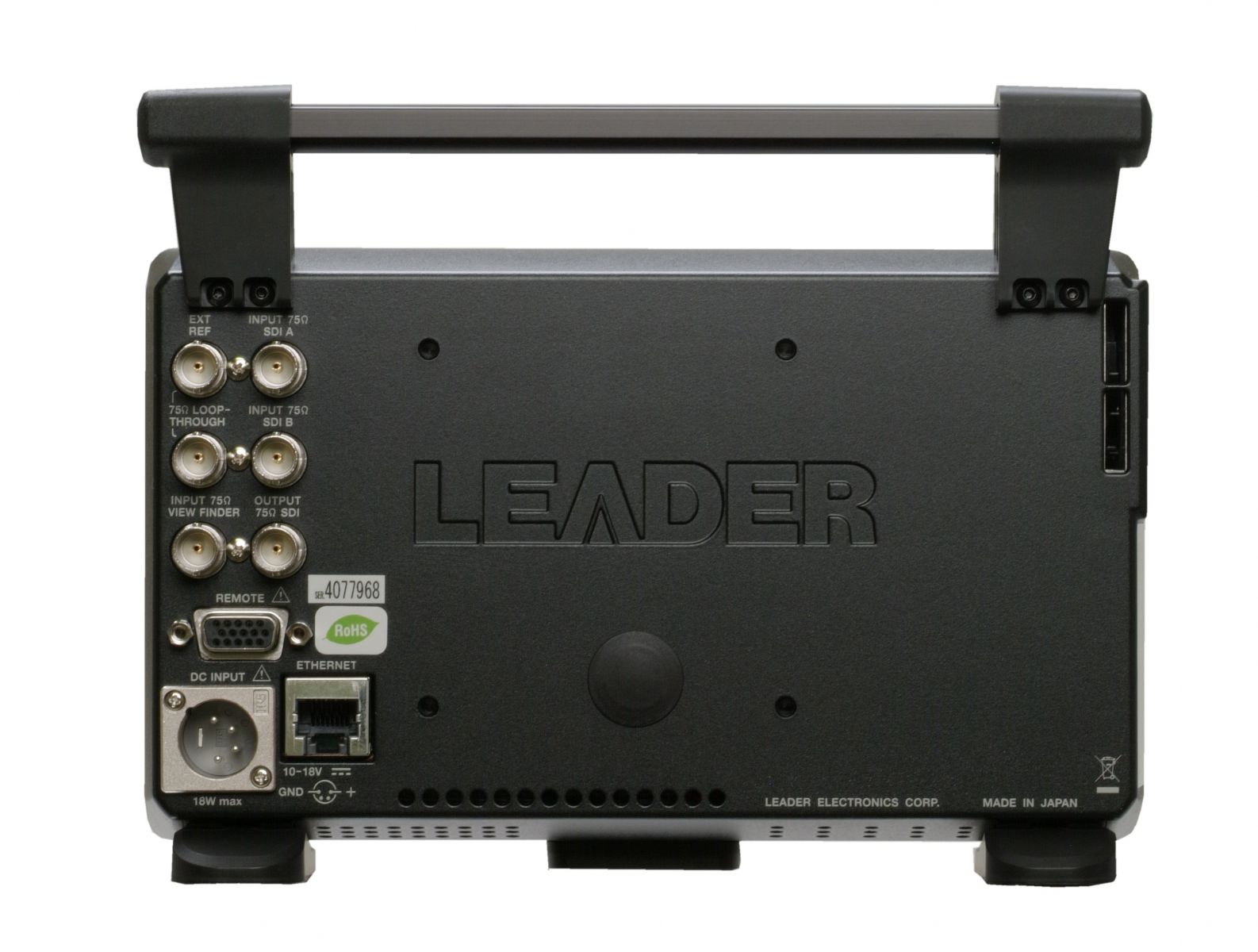

LV5330 Multi-SDI Monitor



Equipped with the latest innovations in pro-video monitoring and test, the LV5330 represents a revolutionary solution for production and studio professionals. The instrument was developed specifically to address the needs of both creative and technical talent, providing information in a variety of easy to use and easy to understand displays. On-Picture measurements as well as true-color and false-color displays allow unprecedented understanding over picture levels and improve collaborative work between creative and technical while providing the direction needed for the post production process. Various multi-display combinations allow for complete and easy monitoring while full-screen presentations provide a wealth of information and enable detailed review of the material. Picture, waveform, vector, 5-bar, audio, status as well as CINELITE and CINEZONE displays provide all of the features needed in the field and in the rack. USB drive connectivity allows you to capture pictures for documentation purposes, personalize presets and perform software updates.

  • Monitors 2 HD/SD-SDI Sources And Displays Picture, CINELITE, CINEZONE, Waveform, Vector, 5-Bar, Audio and Status Displays In Various Combinations.
  • Built-In, 6.5 inch TFT-LCD XGA Display (1024 x 768) For Superb, Crisp Waveforms And Picture Representations.
  • CINELITE On-Picture Measurements, CINEZONE false color displays and peaking function facilitate quick camera focus and exposure setups.
  • Effortlessly Monitors R,G,B Levels & Composite Gamut With Innovative 5-Bar Display.
  • Time-Code Referenced Gamut Error Logs Facilitate Material Q/A And Improve Work Flows.
  • User Settable Error Levels & Alarms Facilitate Worry-Free Monitoring.
  • Embedded Audio Is Displayed And 2 Audio Channels (User Selectable) Are Fed To A Headphone Monitoring Output.
  • Pictures And Waveform Representations Can Be Captured , Reviewed And Compared To Live.
  • USB Connector Allows The Use Of A Jump-Drive For Storing Captured Screens, Presets And Software / Firmware Updates.
  • Various Display Adjustments Facilitate Monitor Matching Within A Production Or Studio Environment.
  • 30 Presets Permit Quick Access To Setups; USB Storage Of Presets Allows Each User To Personalize The Instrument.
  • Provides HD/SD-SDI Switched Output Of The Selected Source.
  • Accepts Black-Burst As Well As Tri-Level Sync For External Reference And Facilitates System Timing.
  • Rack-mounts In A Half-Rack Wide By 3 Rack High Space.
  • Mounts on tripod (top and bottom mounts).
  • Lightweight & Compact; 2.9 lbs, 8.5(W) x 5.5(H) x 2.6(D) inches.
  • 10 - 18 Vdc Operation (XLR); AC Adaptor sold separately.
  • Battery Attachment Plate Is Optional.


 Data Sheet, PDF
