LV5380 Multi-SDI Monitor
| |
.jpg)
|
Designed to satisfy the needs of both creative and technical talent, the LV5380 provides information in a variety of easy to use and easy to understand displays.
Various multi-display combinations allow for complete and easy monitoring while full-screen presentations provide a wealth of information and enable detailed review of the material.
Picture, waveform, vector, 5-bar, audio, status and other optional displays (CINELITE and CINEZONE) provide all of the features needed in the field and in the rack. USB drive connectivity allows you to derive pictures for documentation purposes, personalize presets and perform software updates.
|
- Monitors 2 HD/SD-SDI Sources And Displays Picture, Waveform, Vector, 5-Bar, Audio and Status Displays In Various Combinations.
- Built-In, Large (8.4 inch) TFT-LCD XGA Display (1024 x 768) For Superb, Crisp Waveforms And Picture Representations.
- Effortlessly Monitors R,G,B Levels & Composite Gamut With Innovative 5-Bar Display.
- On-Picture Gamut Indication And Time-Code Referenced Error Logs Facilitate Material Q/A And Improve Work Flows.
- User Settable Error Levels & Alarms Facilitate Worry-Free Monitoring.
- Embedded Audio Is Displayed And 2 Channels Are Fed To A Headphone Monitoring Output.
- Pictures And Waveform Representations Can Be Captured , Reviewed And Compared To Live.
- Ergonomic Software & Hardware Design Permits Quick Access To Key Controls While Keeping Menus Off-Screen.
- USB Connector Allows The Use Of A Jump-Drive For Storing Captured Screens, Presets And Software / Firmware Updates.
- Supports Options Including CINELITE On-Picture Evaluation And CINEZONE (false colors) Display.
- Various Display Adjustments Facilitate Monitor Matching Within A Production Or Studio Environment.
- 30 Presets Permit Quick Access To Setups; USB Storage Of Presets Allows Each User To Personalize The Instrument.
- Provides HD/SD-SDI Switched Output Of The Selected Source.
- Accepts Black-Burst As Well As Tri-Level Sync For External Reference And Facilitates System Timing.
- Rackmounts In A Half-Rack Wide By 4 Rack High Space.
- Lightweight & Compact; 4.5 lbs, 8(W) x 6(H) x 3.5(D) inches.
- 10 - 18 Vdc Operation (XLR); AC Adaptor Included.
- Battery Attachment Plate Is Optional.

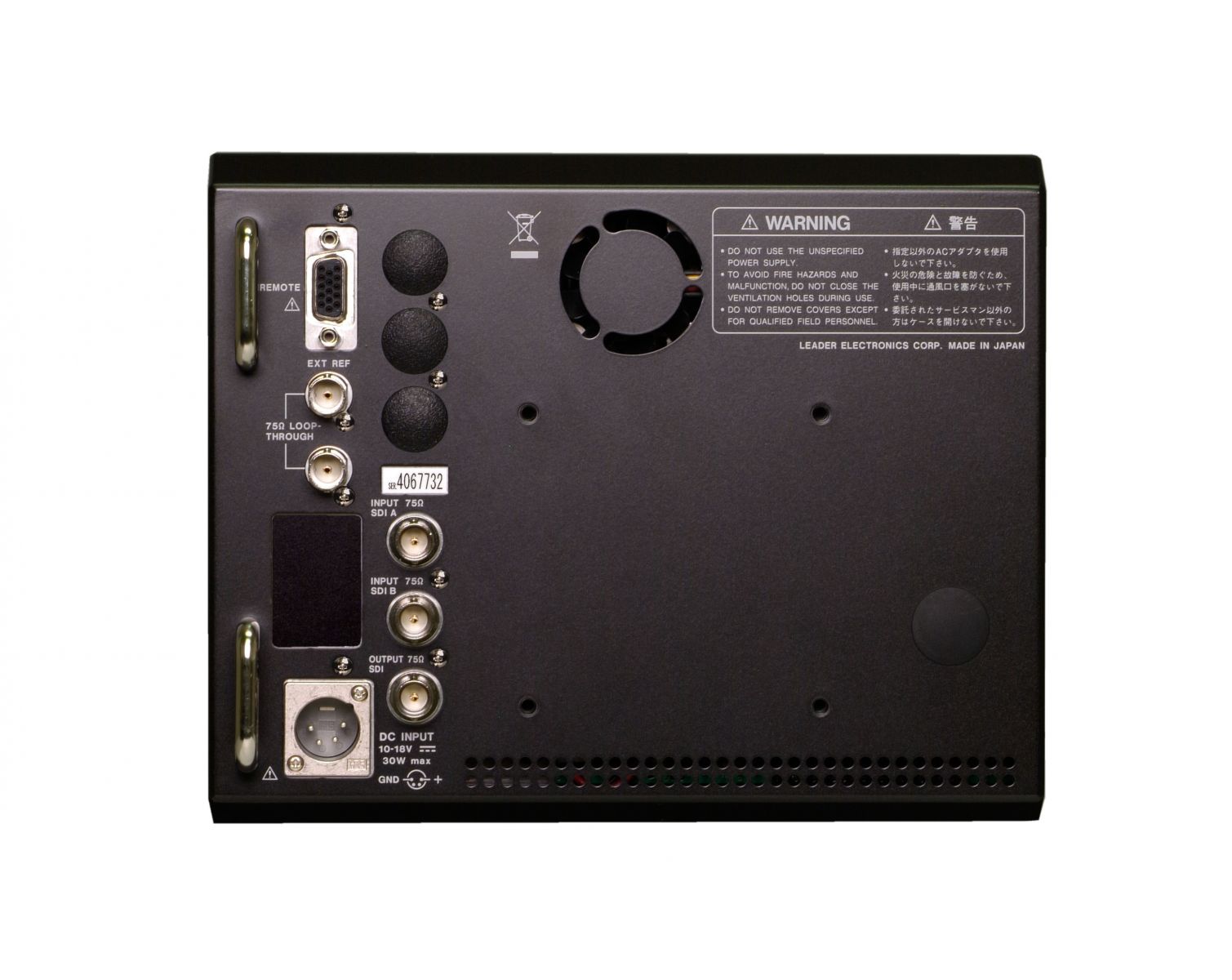

.jpg)
