Sony’s next generation of HDC series camera technology provides the ability to use the high magnification wide zoom range lenses currently employed by HD 2/3-inch systems while maintaining an adequate depth of field to properly show all of the action in live event broadcasting.

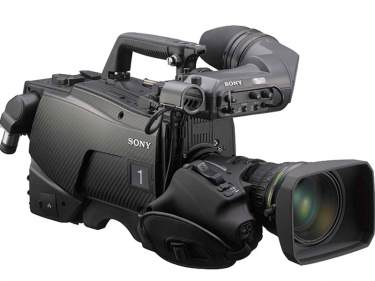

The new HDC-4300 is the world’s first camera to use three 2/3-inch 4K image sensors¹. It supports the same B4-mount lenses as well as the same control surfaces as Sony’s industry leading HDC-2000 series cameras. The existing HDLA-1500 series, control and shading systems, viewfinders and master set-up units are all interchangeable between the HD and 4K systems. Directors and operators can keep their approach to live events — including camera angles, zoom ranges and iris settings – while using familiar camera technology.

“This camera provides 4K capabilities and a workflow that content producers are instantly familiar and comfortable with,” said Rob Willox, marketing manager for content creation systems, Sony’s Professional Solutions Americas. “We’ve developed an approach that allows the large existing HDC series user base to employ 4K advantages such as 8x high frame rate and 4K cut-out and zoom while using a familiar infrastructure and signal path.”

The new HDC-4300 is capable of 4K/HD operation, with 2x, 3x Super Slow Motion as standard, and higher speeds up to 8x available, to produce high-quality replays and specialty program effects.

The camera uses ultra-high-precision alignment technology to realize three 4K sensor on a new prism. This allows the support of the next-generation ITU-R BT.2020 broadcast standard’s widened color space for future-proof masters or post production options for today’s productions, shown on tomorrow’s 4K services.

SZC-4001 Software

Sony’s SZC-4001 software package (sold separately) allows broadcasters to take advantage of 4K capabilities.

Super Slow Motion (up to 8x) at HD Resolution

The SZC-4002 software package (sold separately) enables the system to shoot full HD (1920 x 1080) at frame rates up to 479.52/400 fps, as well as 59.94/50, 119.88/100, and 179.82/150 fps. Users can save these high-frame-rate shots to Sony’s PWS-4400 multiport 4K/HD Live Server.
