Canon introduces two new 2/3” 4K field lenses – the UHD DIGISUPER 86 (UJ86x9.3B) and UHD DIGISUPER 90 (UJ90x9B). Delivering exceptional optical performance, with the UHD DIGISUPER 86 (UJ86x9.3B) surpassing even 4K resolution, both offer outstanding focal range and are ideal for use within live broadcast production environments.


The new lenses ensure exceptional resolution from the image centre to the edges, at both telephoto and wide angle, thanks to their advanced optical construction. Additionally, an increased use of fluorite and UD glass, combined with Canon’s expert use of coatings, results in exceptional control over ghosting and flare with sharp, high contrast images supporting a large number of tones.

The new models provide ultimate flexibility – the UHD DIGISUPER 86 (UJ86x9.3B) has an 86x zoom, with a focal range of 9.3mm – 800mm, and the UHD DIGISUPER 90 (UJ90x9B) goes even further to 90x, with a 9mm – 810mm focal range. To ensure operators can capture a diverse range of scenes, both lenses also feature a built-in 2x extender which doubles the telephoto power, while maintaining exceptional 4K resolution.

4K scenarios such as live sport, do not tolerate even the slightest amount of shake. Thanks to Canon’s optical Image Stabilizer technologies, the UHD DIGISUPER 86 (UJ86x9.3B) and UHD DIGISUPER 90 (UJ90x9B) deliver crisp, clear results, acquiring maximum precision, even during panning. This is essential for tracking moving subjects at sports matches and events, while compensating for swing-back. Additionally, operators are able to keep subjects in focus, even in challenging situations, such as when long focus but shallow depth of field is required.

The UHD DIGISUPER 86 (UJ86x9.3B) and UHD DIGISUPER 90 (UJ90x9B) feature a compact design, comparable in size and weight to current HD 2/3” field lenses, allowing easy integration into operating environments. Both lenses also incorporate a 20-pin connector for integration with virtual systems and are fully compatible with existing Canon accessories designed for 2/3” HD Canon field lenses.

UHD DIGISUPER 86 (UJ86x9.3B) key benefits:

• Outstandingly high resolution 2/3” 4K field lens with 86x zoom and 9.3-800mm focal length (up to 1600mm with 2x built-in extender)

• Class-leading beyond-4K performance right to the edge of the image and throughout the zoom range for unmatched quality

• High contrast and high resolution in all wavelength regions of the B, G and R channels in the 4K and beyond 4K frequency bands

• Similar size and weight to HD field lenses for seamless integration with existing HDTV technical setups and shooting environments

• Beyond 4K resolution even with image stabilisation applied

• Full support for virtual systems thanks to the built-in 16-bit encoder

• Fully compatible with existing Canon HD field lens accessories

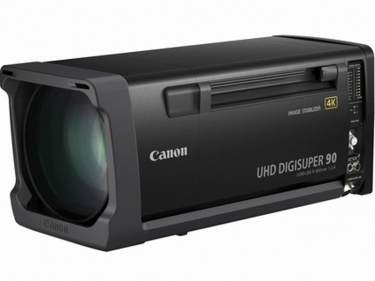

UHD DIGISUPER 90 (UJ90x9B) key benefits:

• 2/3” 4K field lens with 90x zoom and 9-810mm focal length (up to 1620mm with the 2x built-in extender)

• Achieve stunning 4K resolution from 2/3” 4K cameras that extends right from the centre of the image

• Retain stunning 4K resolution even with image stabilisation applied

• Similar size and weight to HD field lenses mean it seamlessly integrates with existing HDTV technical setups and shooting environments

• Sustained 4K performance with precise focus and high zoom ratio

• Cover wide spaces like large sports arenas with a single lens thanks to the wide focal range

• Full support for virtual systems thanks to the built-in 16-bit encoder

• Fully compatible with existing Canon HD field lens accessories
