TVN MOBILE PRODUCTION has selected Leader LV5490 test instruments as its master reference during coverage of the UEFA Champions League final. A capacity crowd at the NSC Olimpiyskiy stadium in Kiev saw Real Madrid secure its third consecutive and 13th overall UEFA Champions League title. The game was transmitted live in UHD and HD to television viewers around the world.
"We invested in five Leader LV5490 instruments just over a year ago following highly successful UHD-HDR coverage of the 2017 Bundesliga football match between Borussia Mönchengladbach and RB Leipzig," said TVN production engineer Holger Tadge. "The LV5490 is intuitive to operate and the real-time false-colour picture display is proving especially useful in ensuring we make the greatest possible use of the UHD-HDR headroom in content we deliver to our clients."
"The Kiev football final was a really large scale project requiring an OB crew of 73 people," added Wolfgang Peiss, production manager in charge. "We implemented a workflow allowing completely independent signal generation for UHD and HD, feeding into a single production configuration. The camera plan was based on a 40-camera set-up. In addition to our TVN-Ü2, TVN-Ü3 and TVN-Ü5, we were responsible for a helicopter crew, a wireless crew and a PMT SpiderCam installation. An added factor was the need to accommodate more than 50 microphones capturing immersive audio from the stadium."
"We are very pleased to see TVN achieving ongoing success with its LV5490 instruments which are equally suitable for OB and studio operation," added Leader's European regional development manager Kevin Salvidge. "A crucial feature of the LV5490 is the ease with which it can be configured to match the wide choice of production standards now being implemented across the broadcast business. These can be selected either at the time of purchase or added as optional upgrades during the proven very long lifetime of Leader test instruments."

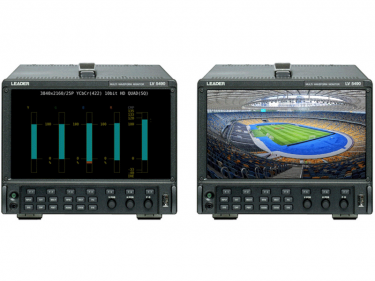

The LV5490 offers 4K, UHD, 3G, HD and SD test and measurement features in a half-rack-width by 4U portable unit with a full high definition 9 inch front-panel monitor. It provides all the capabilities needed to implement the full potential of high dynamic range in both HD and UHD.
Signal displays such as video waveform, chroma levels, colour vectors, bar graphs, noise, video patterns, quad-3G phase, data tables, camera picture output, colour chart, multichannel audio levels and surround-sound vectors can be viewed simultaneously in a user-customisable layout. If a specific element requires detailed attention, this can be selected quickly for viewing at higher resolution or full-screen.
Supplementing its front-panel display, the LV5490 provides 1920 x 1080 HD DVI and HD-SDI feeds for connection to external monitors. Simultaneous viewing of up to four 3 gigabit/s SDI inputs is possible, including overlays. The size and location of individual channels can be adjusted on the display using a USB pointer so the user is not limited to fixed-size quadrants. An alarm can be set to alert operators if the noise level exceeds a predefined threshold.
