Panasonic unveiled new Software Control Panel for video switcher AV-HSW10. It can be used for diverse operations and configurations with a networked PC or tablet.


Both inputs and outputs can be easily confirmed on the Multiviewer screen for intuitive operation. Combination of the AV-HSW10 with a PC or tablet loaded with the Software Control Panel enables workload sharing and remote operation on location. Intuitive operation minimizes setup time for certain configurations, increasing the efficiency of video recording, production and single-operator transmission.

FEATURES

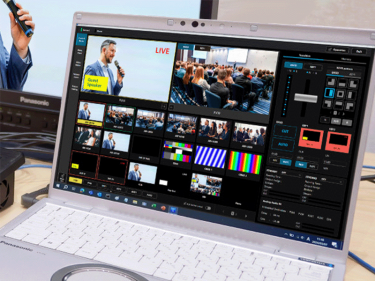

The AW-SF10 Software Control Panel enables video switching and all other AV-HSW10 functions directly from a PC or tablet. The GUI screen is organized into five modes based on function to realize intuitive control and the control panel boasts a number of special convenient features for enhanced usability.

■ In Control mode, users can switch video input to the AV-HSW10. Inputs such as PGM and PVW can be displayed on the GUI for intuitive operation while viewing actual images, similar to the multi-view monitor. Transition controls, shot/still memory settings and recalls are accessible on the right-side block. It also allows transmission-status and audio-level monitoring, which is particularly useful for SRT and RTMP streaming.

■ The Menu Panel mode enables each AV-HSW10 function to be operated and configured in the same way as the main unit.

■ Video Status mode displays all inputs, outputs and internal resources as thumbnails, making it easy to check input/output settings.

■ Maintenance mode automatically detects AV-HSW10 units on the same network and connects them to the Software Control Panel, allowing confirmation of software versions and synchronization with the PC's internal clock.

■ Source Setting mode allows control-panel button assignments to be customized for specific operational requirements, even while viewing live video. Additionally, multi-view assignments can be selected from a menu of preconfigured patterns.
